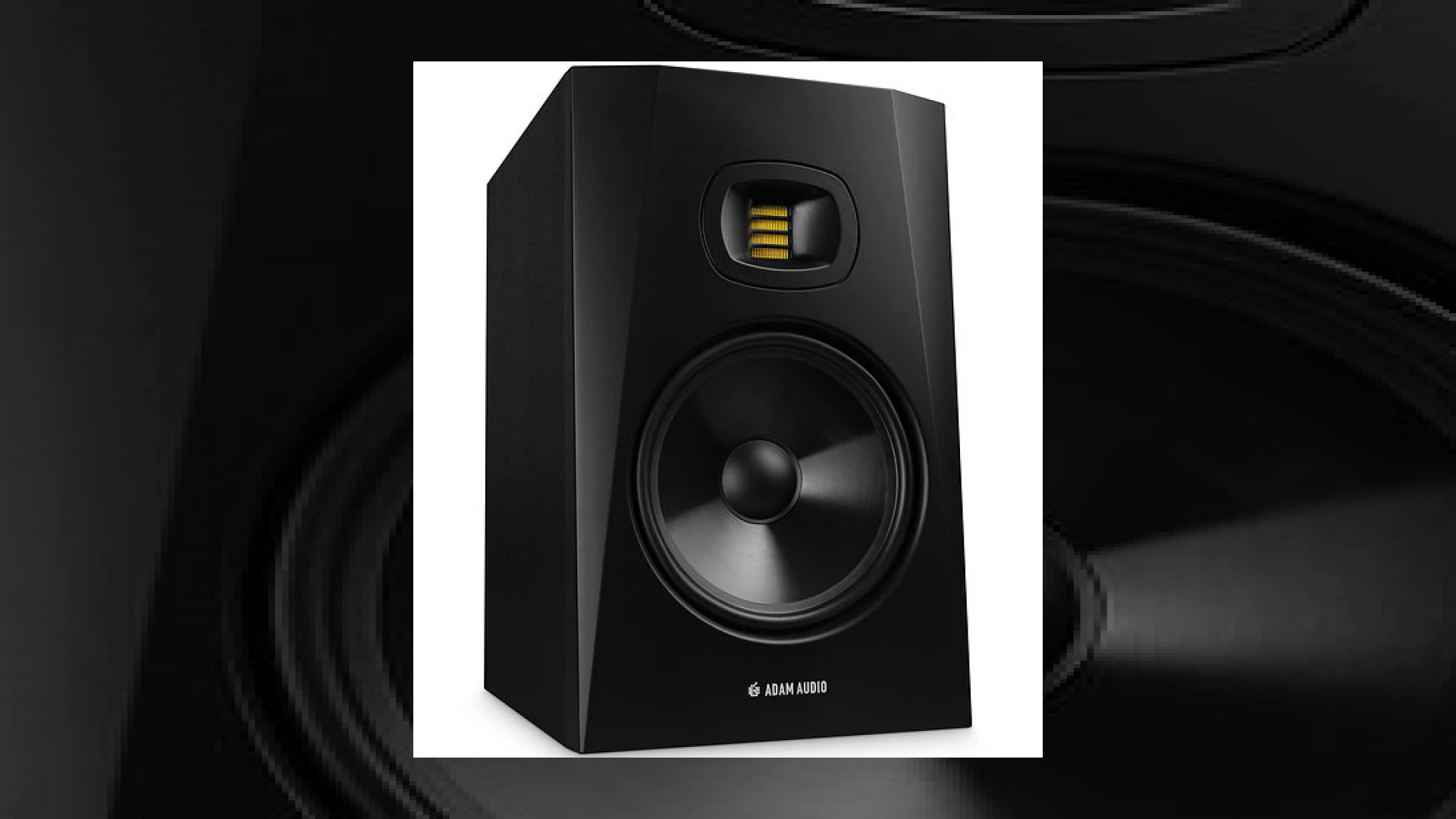

For home studio owners and semi-professional mixing engineers, achieving accurate low-end monitoring has always been an expensive challenge. Standard 5-inch and 7-inch monitors often roll off just where the critical sub-bass frequencies begin to shape the groove. With the latest release from ADAM Audio, adam’s t series gains a larger model that promises to address these low-end limitations without breaking the bank. The newly introduced T8V active studio monitor brings the signature precision of ADAM’s ribbon tweeter technology into a form factor capable of serious acoustic output and extended bass response.

At SM Mastering, we understand that a monitoring system is the window through which you view your entire mix. While high-end brands like Neumann set the gold standard for acoustic precision in pristine rooms, budget-friendly monitors must work hard to deliver translatable results in less-than-perfect acoustic environments. This new addition to the T Series aims to do exactly that by scaling up the driver architecture to move more air while maintaining the phase coherence and high-frequency detail the series is known for.

How adam’s t series gains a larger model and Why It Matters for Your Low End

The headline news for this release is the integration of an 8-inch polypropylene woofer, representing a significant jump from the previous T7V and T5V models. By analyzing how adam’s t series gains a larger model, we can see that the physical area of the 8-inch woofer allows the monitor to reach down to an impressive 33 Hz. This level of low-frequency extension is critical for modern electronic music, hip-hop, and cinematic scoring where sub-bass content dictates the energy of the track.

This larger woofer is acoustically coupled with a rear-firing bass reflex port. To minimize the chuffing and air turbulence common in smaller port designs, ADAM has incorporated a flared exit geometry. This ensures that even when pushing the monitor to its maximum SPL of 118 dB per pair, the low end remains tight, defined, and free of physical distortion artifacts. Powering this massive low-end driver is a dedicated 70 W Class D amplifier, while a 20 W Class D amplifier feeds the high-frequency driver, ensuring efficient, cool-running power distribution.

High-Frequency Precision with the U-ART Tweeter

While the low end gets a major boost, the high frequencies remain handled by ADAM’s renowned U-ART (Unique Accelerated Ribbon Tweeter) 1.9-inch ribbon driver. This tweeter utilizes a 4:1 velocity transfer ratio, allowing it to move air quicker than traditional dome tweeters. The result is an incredibly fast transient response and pristine high-frequency detail extending up to 25 kHz.

The U-ART tweeter is mated to the High-frequency Propagation System (HPS) waveguide, the same dispersion-control technology found in ADAM’s premium S Series monitors. This waveguide creates a wide horizontal sweet spot but a tightly controlled vertical dispersion. This design is highly beneficial for home studios, as it reduces early reflections from mixing desks, consoles, and ceilings, leading to a much more accurate stereo image and less ear fatigue during long sessions.

Technical Specifications

To help you understand where this new monitor fits into your studio upgrade path, here is a comprehensive breakdown of the T8V specifications:

Practical Studio Workflow Tips for 8-Inch Monitors

If you are upgrading from smaller 5-inch monitors, seeing how adam’s t series gains a larger model will reveal a lot of sub-bass information that was previously invisible to you. However, managing this extra energy requires careful implementation:

• Keep Them Off the Desk: Due to the powerful low-frequency output of the 8-inch woofer, placing these monitors directly on a desk will cause severe acoustic coupling. Use dedicated, decoupled speaker stands or high-density isolation pads.
• Mind the Rear Port: Since the bass reflex port is rear-firing, avoid placing the T8V directly against a wall. Keep at least 8 to 12 inches of space behind the cabinet to allow the flared port to function without creating artificial bass build-up.
• Utilize the Onboard EQ: The T8V features high- and low-frequency shelving filters (-2 dB, 0, +2 dB). If your room is untreated or small, pulling the LF shelf down by -2 dB can help tame room modes.
• Reference Your Masters: Always cross-reference your mixes with reference-grade material. You can read more about setting up target curves and preparing tracks for distribution in our collection of SM Mastering Audio Articles.

Conclusion

In summary, as adam’s t series gains a larger model, budget-conscious studios get closer to professional performance than ever before. The T8V successfully marries the detailed, non-fatiguing high frequencies of the U-ART ribbon tweeter with a powerful, deep low-end driver that eliminates the immediate need for an external subwoofer. Whether you are mixing heavy electronic tracks or editing high-fidelity acoustic recordings, the T8V stands out as an exceptional value proposition in modern studio monitoring.

Frequently Asked Questions

Is the ADAM T8V too large for a small bedroom studio?

While the T8V offers excellent low-end extension, its physical size and 8-inch woofer can easily overwhelm small, acoustically untreated rooms. If your room is under 100 square feet and lacks acoustic treatment, the smaller T7V or T5V might offer a more balanced response, unless you plan to invest in high-quality bass traps.

Can I use the T8V for professional mastering?

The T8V is an incredibly capable mixing monitor. For high-end professional mastering, engineers often look for ultimate phase linearity across the crossover frequency. However, when paired with high-quality room correction software and appropriate acoustic treatment, the T8V provides an outstanding secondary reference monitor for mastering checks.

What is the benefit of the U-ART ribbon tweeter over a dome tweeter?

The U-ART ribbon tweeter uses a folded membrane that squeezes air out rather than pushing it. This design prevents dome breakup, reduces distortion, offers a faster transient response, and provides a wider horizontal sweet spot, meaning your stereo image remains stable even if you move slightly out of the center mixing position.
