Tascam reveal Model 24 recorder, USB interface & mixer | SM Mastering

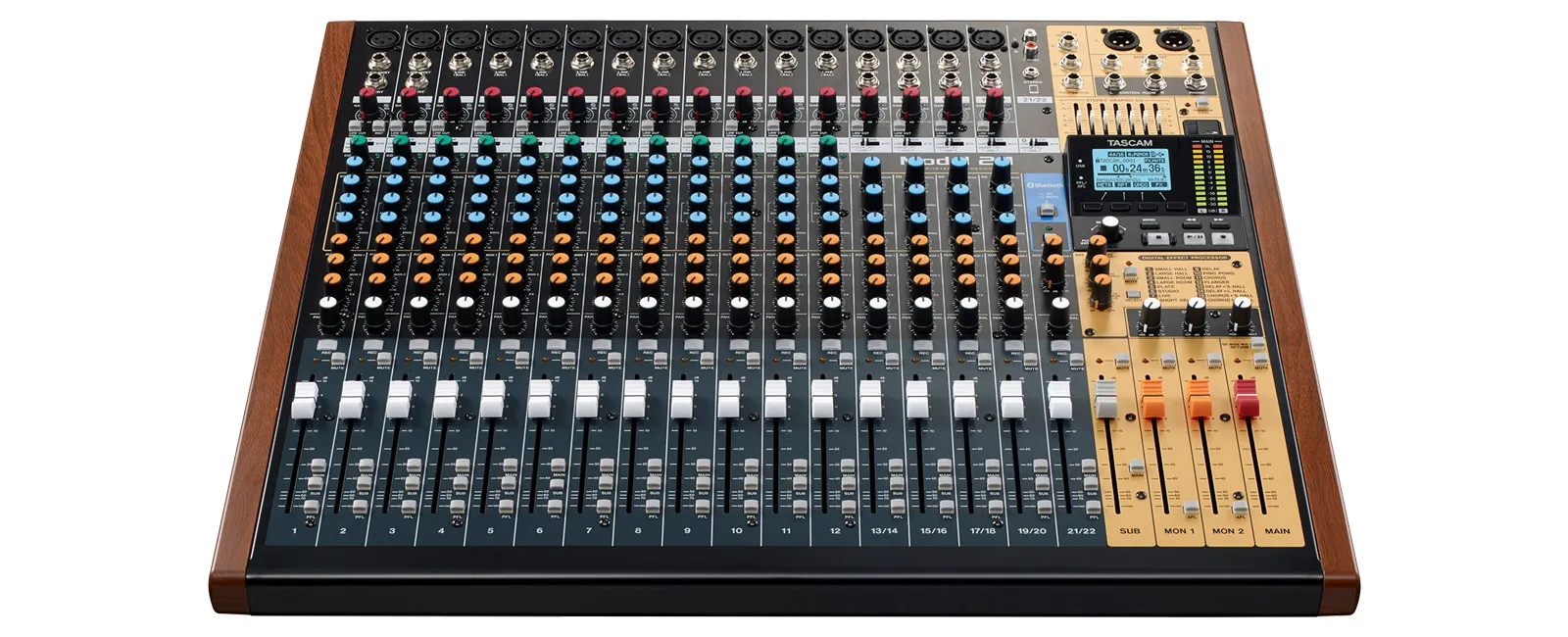

Visual context for Tascam reveal Model 24 recorder, USB interface & mixer.

The hybrid studio environment has just received a major upgrade with the latest hardware announcement from Tascam. In a move that beautifully bridges classic analog workflow with cutting-edge digital recording capabilities, the industry-shaping announcement of the tascam reveal model 24 recorder, usb interface & mixer has captured the attention of studio engineers and live sound professionals worldwide. This multitrack system brings back the physical, hands-on control of classic console design while maintaining seamless digital audio workstation (DAW) integration, providing a highly requested solution for modern tactile recording workflows.

The Versatility of the tascam reveal model 24 recorder, usb interface & mixer

For engineers who prefer the tactile feel of physical faders, the release of the tascam reveal model 24 recorder, usb interface & mixer represents a delightful return to form. The unit functions as a fully realized 22-channel analog mixing console, equipped with premium Tascam preamps, 100 mm long-throw faders, and a highly intuitive physical EQ section. It allows you to track directly to an onboard SD card at 24-bit, 48 kHz resolution, making it an exceptional standalone device for both live recording and studio production without the absolute necessity of a computer in the room.

When you are ready to transition into a DAW environment, the console acts as an incredibly powerful 24-input, 22-output USB audio interface. This dual capability allows engineers to capture a live performance on-site via SD card and then easily transfer the multitracks into their favorite DAW for editing, overdubbing, and mastering. For tracking high-quality vocals or instruments through this system, pairing it with legendary hardware or microphones from industry leaders like Neumann guarantees world-class clarity before your tracks ever hit the digital domain.

Additional product view and interface angle for Tascam reveal Model 24 recorder, USB interface & mixer.

Hardware Specifications

Understanding the technical capacity of your console is crucial for optimizing your signal flow. Below is a detailed breakdown of the specifications of this versatile unit:

Physical Architecture and Signal Routing

Delving deeper into its physical routing, the console features 12 mono channels with balanced XLR mic preamps and TRS line inputs. To enhance your recording path, channels 1 and 2 feature direct instrument-level switches and insert points, allowing you to patch in premium hardware processing. This makes the tascam reveal model 24 recorder, usb interface & mixer highly versatile for tracking guitars and bass without needing external DI boxes.

Additional product view and interface angle for Tascam reveal Model 24 recorder, USB interface & mixer.

Additionally, you get 4 stereo channels featuring mono XLR inputs and left/right line inputs. An extra stereo channel (21/22) is equipped with unbalanced RCA, unbalanced stereo minijack, and wireless Bluetooth® connectivity. This allows you to easily stream reference tracks directly from a mobile device or laptop during a session. Each channel is completed with a flexible Routing Mode selector, enabling you to toggle between live input, USB returns from your DAW, or returns from the internal SD card recorder.

Practical Studio Workflow Tips

• Hybrid Summing: Send your raw DAW tracks back through the individual channels of the console via USB. Utilize the physical 100 mm faders and onboard EQ to sum your mix back down to a stereo track, injecting analog warmth into your digital project.
• Zero-Latency Monitoring: When tracking vocals, route the performer’s monitor mix directly through the console’s physical monitor sends (Monitor 1 and Monitor 2) to bypass DAW latency entirely.
• Dual-Backup Recording: For critical live recordings, use the tascam reveal model 24 recorder, usb interface & mixer to record to the onboard SD card while simultaneously streaming the multitrack audio over USB into a laptop running a backup DAW. This redundant recording setup protects against system crashes.

To learn more about how to optimize your final mixes for streaming platforms or hardware releases, explore our expert production and engineering guides at SM Mastering Audio Articles.

Conclusion

Whether you are looking to simplify your live setup, streamline your home studio, or integrate tactile mixing into your digital workflow, this unit delivers exceptional value. The tascam reveal model 24 recorder, usb interface & mixer stands out as an all-in-one workstation that honors classic physical workflow while fully embracing modern digital standards, proving that tactile analog mixing still has a vital place in the modern studio environment.

Frequently Asked Questions

Can the Tascam Model 24 record and play back tracks simultaneously?

Yes, the Model 24 supports simultaneous multitrack recording and playback. This makes it perfect for overdubbing in the studio or running backing tracks during live performances while capturing the entire live band on separate tracks.

What is the maximum recording resolution of the onboard SD card recorder?

The onboard SD card recorder captures pristine, uncompressed audio at 24-bit depth and 48 kHz sampling rate, which is the professional standard for video production, broadcasting, and high-fidelity music tracking.

Does the Bluetooth connectivity on channel 21/22 support multi-device pairing?

Channel 21/22 supports single-device pairing at a time via a dedicated pairing button. This allows you to smoothly stream reference tracks, break music, or guide tracks from a smartphone, tablet, or laptop directly into the stereo main mix or monitor sends.
