During our team’s coverage of the winter trade shows, the announcement of the namm 2020 — presonus quantum 2626 generated immense buzz among studio engineers and mastering experts alike. As professional audio systems transition rapidly toward high-bandwidth connectivity, PreSonus has delivered a striking response to modern production demands. Building on the reputation of their original Thunderbolt 2 devices, this 1U rackmount unit steps into the modern era with high-speed Thunderbolt 3 connectivity, packing high-end conversion and raw speed into an exceptionally accessible package.
The Legacy and Speed of the namm 2020 — presonus quantum 2626
For professionals optimizing their digital audio workstations, implementing the namm 2020 — presonus quantum 2626 provides unmatched round-trip latency that rivals high-end PCI Express systems. By stripping away unnecessary hardware DSP layers, the audio stream travels directly from the high-definition converters to your CPU. This “direct-to-host” philosophy allows engineers to run resource-heavy plugins natively inside their DAW without experiencing distracting monitoring delays. It harkens back to the structural simplicity of classic rack units while utilizing modern, high-speed protocols.
Technical Specifications and Connectivity

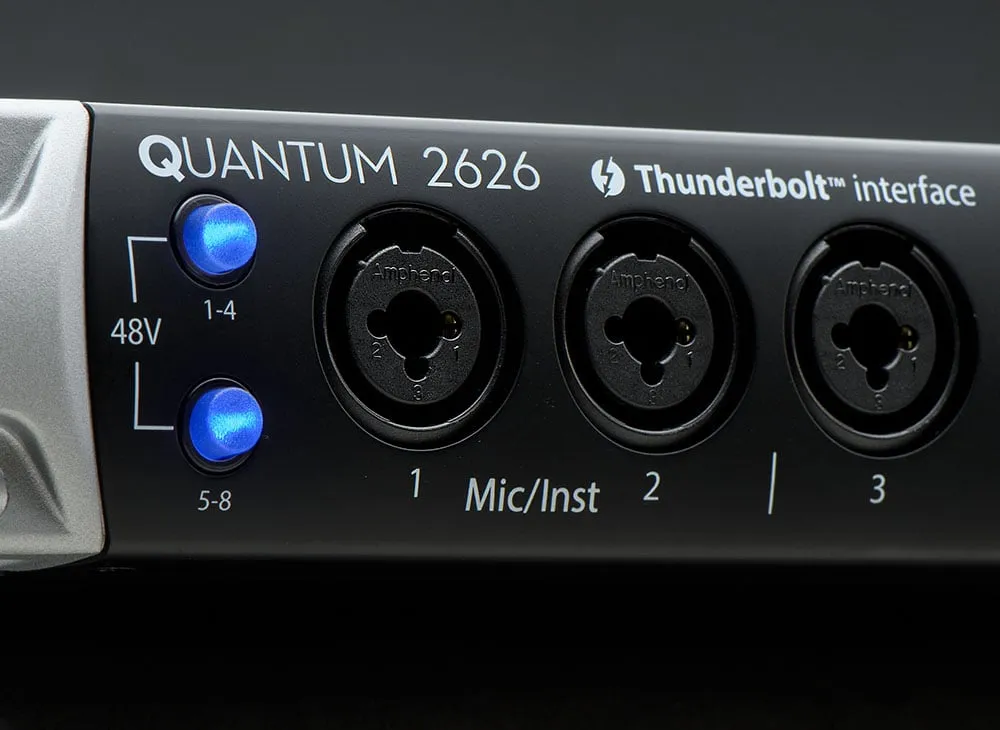

The unit acts as a versatile bridge between the analog and digital domains. Sporting eight premium, front-panel XMAX Class A microphone preamps, it delivers clean headroom and highly musical gain stages. On the rear panel, the routing options are extensive. Channels 1 and 2 feature dedicated preamp outputs and balanced line returns, allowing you to insert hardware compressors, external EQs, or processing chains before the signal digitalizes.
Additional product view and interface angle for NAMM 2020 — PreSonus Quantum 2626.
| Name | Use | Price | Rating |
|---|---|---|---|
| PreSonus Quantum 2626 | Thunderbolt 3 Studio Interface / Mastering I/O | $599 USD (MAP) | 4.8 / 5 |
Hardware Routing and Master Studio Integration

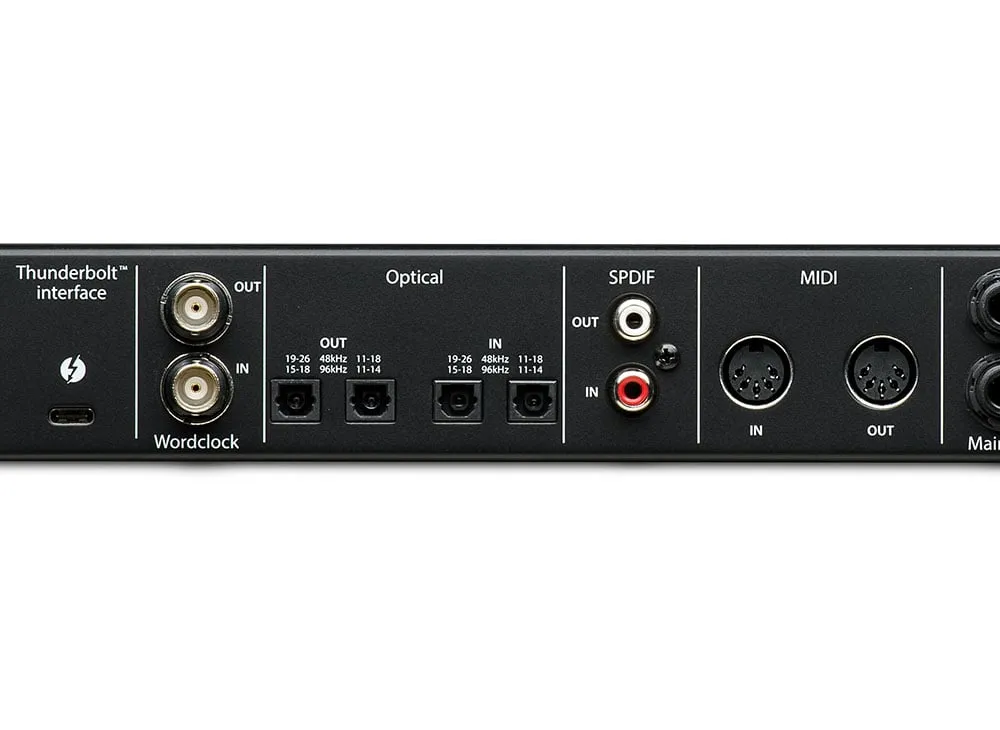

Integrating the namm 2020 — presonus quantum 2626 into an analog hybrid setup is straightforward, thanks to its physical inserts on channels 1 and 2. This feature is particularly valuable for mastering chains where a preferred analog bus compressor or tube EQ needs to be hard-patched into the initial input stage. The rear panel also hosts eight balanced TRS line outputs, main left/right monitor outputs, dual ADAT optical ports, coaxial S/PDIF, and robust BNC Word Clock connections for stable system synchronization. Learn more about advanced DSP and hardware integration from industry innovators like Universal Audio.
In comparison to legacy systems, the clocking on this interface ensures minimal jitter, which is critical when processing delicate high-frequency information in mastering sessions. For more in-depth reviews on mastering gear and techniques, check out our resource archive at SM Mastering Audio Articles.
Additional product view and interface angle for NAMM 2020 — PreSonus Quantum 2626.
Practical Studio Workflow Tips with the Quantum 2626
- Maximize Native Power: Because the interface relies entirely on your DAW’s processing speed, ensure your computer’s buffer size is optimized to take full advantage of the Thunderbolt 3 bus speed.
- Utilize the Dual ADAT Ports: When operating the namm 2020 — presonus quantum 2626 in a professional mastering environment, the dual ADAT optical inputs allow for seamless 16-channel expansion at 44.1/48 kHz, or 8 channels of high-resolution S/MUX expansion up to 96 kHz.
- Keep Preamp Outs Patched: Use channels 1 and 2 as dedicated tracking channels for vocals or acoustic instruments where your favorite outboard compressor can sit perpetually in the insert loop.
Conclusion
Ultimately, the namm 2020 — presonus quantum 2626 represents a price-to-performance milestone for Thunderbolt 3 interfaces, combining high-quality XMAX preamps with ultra-low latency. It strips away the bloat, offering pure conversion speed, exceptional physical routing flexibility, and robust clocking stability. Whether you are running a multi-mic tracking session or utilizing it as the center control hub of a hybrid mastering studio, this interface delivers clarity and speed far exceeding its price point.
Frequently Asked Questions
Does the Quantum 2626 require an external power supply, or is it bus-powered?
The Quantum 2626 is a 1U rackmount unit and requires the included external 12 VDC power supply to operate. It cannot be powered solely over the Thunderbolt 3 cable due to the high-power demands of its eight Class A preamps and extensive digital routing circuitry.
Additional product view and interface angle for NAMM 2020 — PreSonus Quantum 2626.
Can I use the insert points on channels 1 and 2 for mastering equipment?
Yes. The dedicated preamp outputs and balanced line returns on channels 1 and 2 allow you to patch in external hardware, such as mastering EQs or bus compressors, directly into the signal path before the analog-to-digital conversion occurs.
Is this interface compatible with older Thunderbolt 1 and 2 computers?
Yes, it is backward compatible. However, you will need a qualified bi-directional Thunderbolt 3 to Thunderbolt 2 adapter and the appropriate legacy cable, while ensuring your operating system meets the minimum driver requirements specified by PreSonus.
